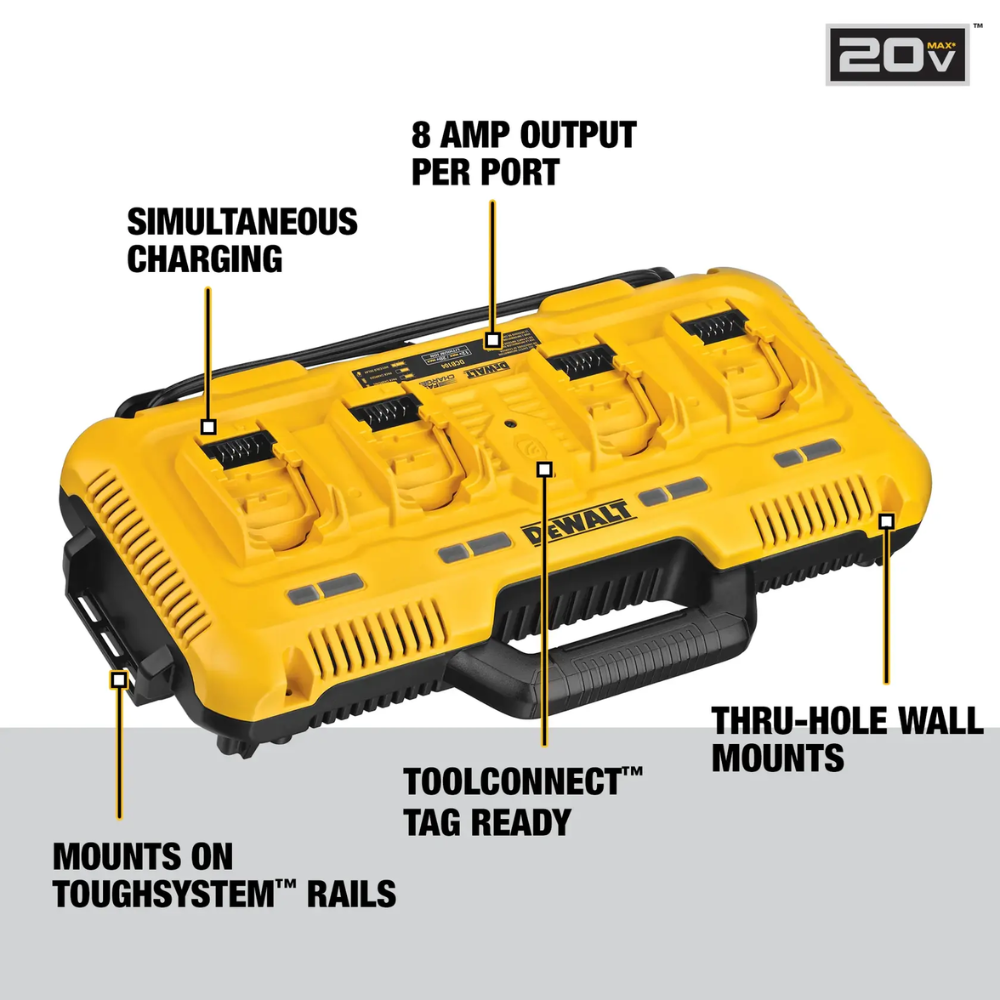

Key Features & Benefits
- Simultaneous 4-Port Charging: Charges up to four DEWALT batteries at once, delivering a dedicated 8 Amps of output current per port to maximize efficiency.
- Multi-Voltage Compatibility: Universal ports support 12V MAX*, 20V MAX*, and heavy-duty FLEXVOLT® 20V/60V MAX* lithium-ion batteries.
- Rapid Charge Times: Gets you back to work faster—charges four DCB204 4.0Ah 20V MAX* batteries in just 40 minutes, and four DCB606 6.0Ah FLEXVOLT® batteries in 60 minutes.
- TOUGHSYSTEM® Integration: Built-in side brackets allow the charger to click seamlessly onto DEWALT TOUGHSYSTEM® storage rails for secure transit and organization.
- Smart Electronics & Cooling: Features LED diagnostic indicators to monitor charge status, hot/cold delay, and battery health, paired with internal fans to prevent overheating.
- Jobsite Organization: Features convenient integrated cord wraps, secure wall-mounting thru-holes, and a dedicated Tool Connect™ Tag tracking slot (tag sold separately).
Technical Specifications
| Feature | Specification |
|---|---|
| Model | DCB104 |
| Number of Ports | 4 (Independent) |
| Input Voltage | 120V AC (Standard Outlet) |
| Output Amperage | 8.0 Amps per port (Simultaneous) |
| Battery Compatibility | DEWALT 12V MAX* / 20V MAX* / FLEXVOLT® 20V/60V MAX* |
| Charging Type | Lithium-Ion (Li-Ion) |
| USB Ports | 2 Side-mounted USB charging ports |
| Mounting Options | Wall-mount thru-holes / TOUGHSYSTEM® brackets |
| Weight | 2.9 kg (6.4 lbs) |
Approximate Charge Times (All 4 Ports Simultaneously)
-
- 2.0 Ah Battery: ~30 Minutes
- 4.0 Ah Battery: ~40 Minutes
- 5.0 Ah Battery: ~47 Minutes
- 6.0 Ah FLEXVOLT® Battery: ~60 Minutes
- 9.0 Ah FLEXVOLT® Battery: ~75 Minutes
- 12.0 Ah FLEXVOLT® Battery: ~100 Minutes
What’s Included In The Box?
- (1) DEWALT DCB104 4-Port Simultaneous Fast Charger
- (1) Instruction Manual
(Note: Batteries and Tool Connect™ Tags are sold separately).
