| Weight | 0.02 kg |
|---|---|
| Dimensions | 0.30 × 0.05 × 0.05 cm |
| Brands | |
| Accessories | WALL PLUG |
| Sizes | 5 x 30MM |

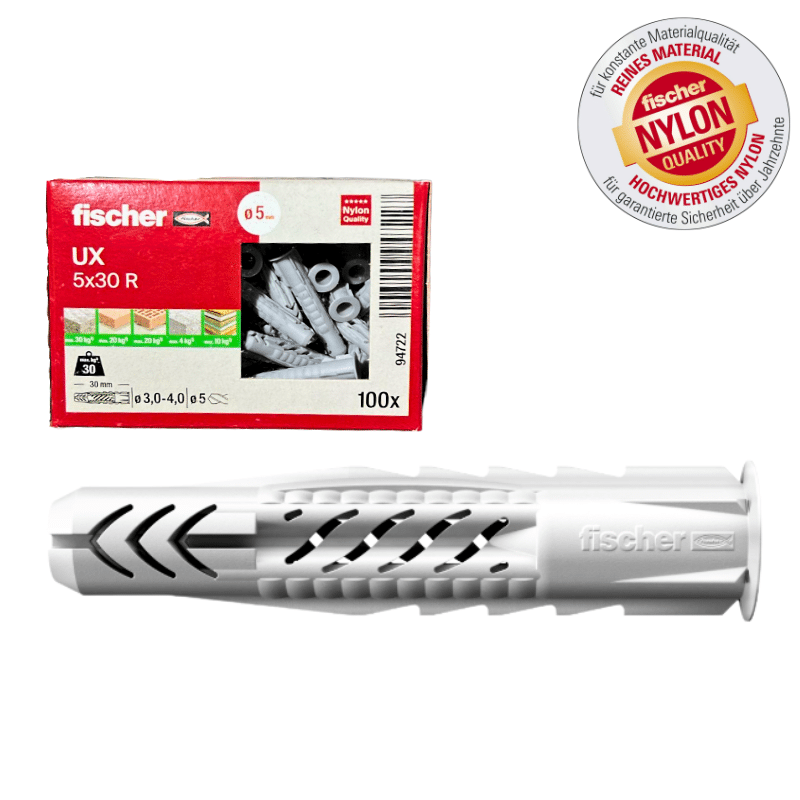

FISCHER 94722, HIGH QUALITY NYLON UNIVERSAL WALL PLUG UX SERIES, 5 x 30MM WITH RIM
- Plug holds in all building materials.
- Plug expands in solid building materials.
- Maximum hold in solid and hollow building materials due to knotting.
- Optimum screw guidance due to slanting connection bridges.
- Installation safety due to anti-rotation lock.
- UX Series Plug with rim for pre-positioned installation.

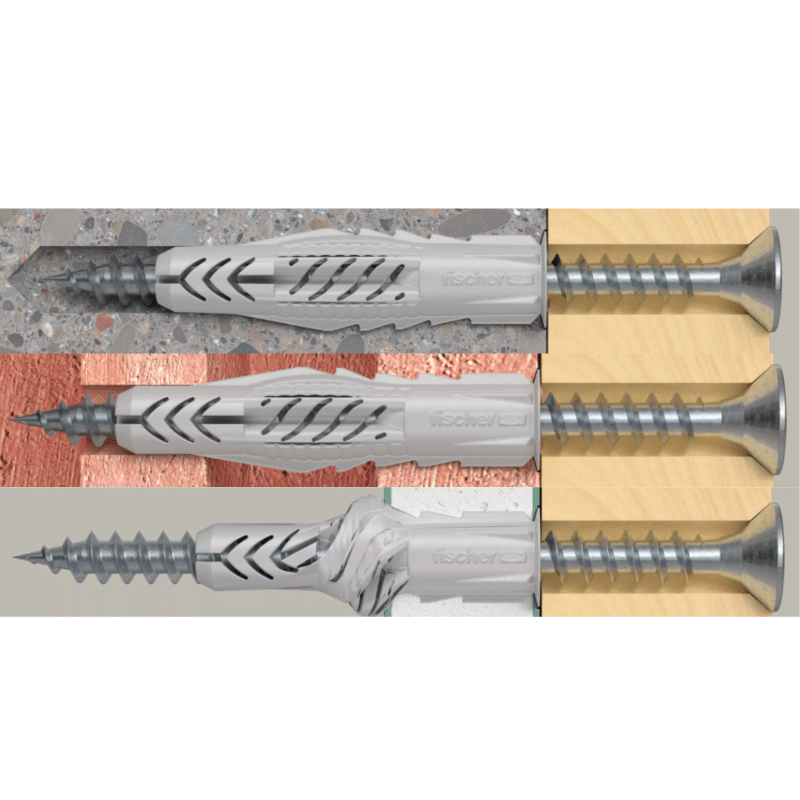

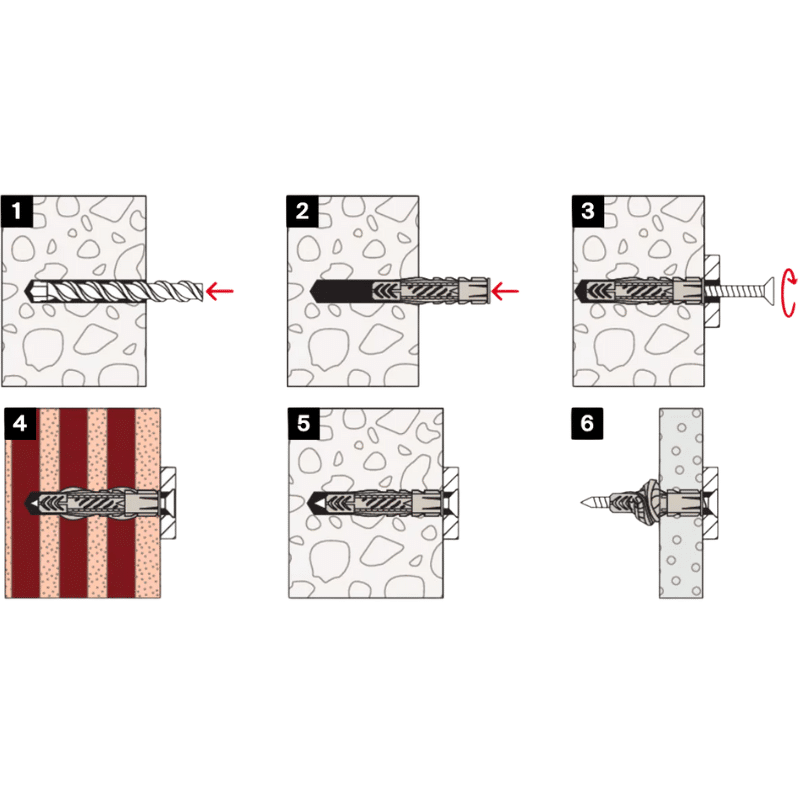

- Turning in the screw causes the UX to expand in the solid building material and to knot within the cavity.
- The required screw length is given by the plug length + fixture thickness + 1 x screw diameter.
- Suitable for wood and chipboard screws, as well as stud screws.
- In the case of board building materials, the threadless part of the screw must not be longer than the fixture, and the UX with rim is to be used.
- The edge distance must be at least one plug length.
Materials that can be applied on:
- Concrete
- Gypsum plasterboard
- Solid sand-lime brick
- Natural stone
- Aerated concrete
- Solid brick
- Chipboard
