Technical data
- Impact rate at rated speed: 0 – 5,100 bpm
- Rated speed: 0 – 1,300 rpm
- Rated input power: 850 W
- Impact energy: 3.2 J
- Tool holder: SDS plus
- Weight: 3.1 kg
- Drilling range:
- Drilling dia. concrete, hammer drill bits: 4 – 28 mm
- Opt. appl. range concrete, hammer drill bits: 8 – 16 mm

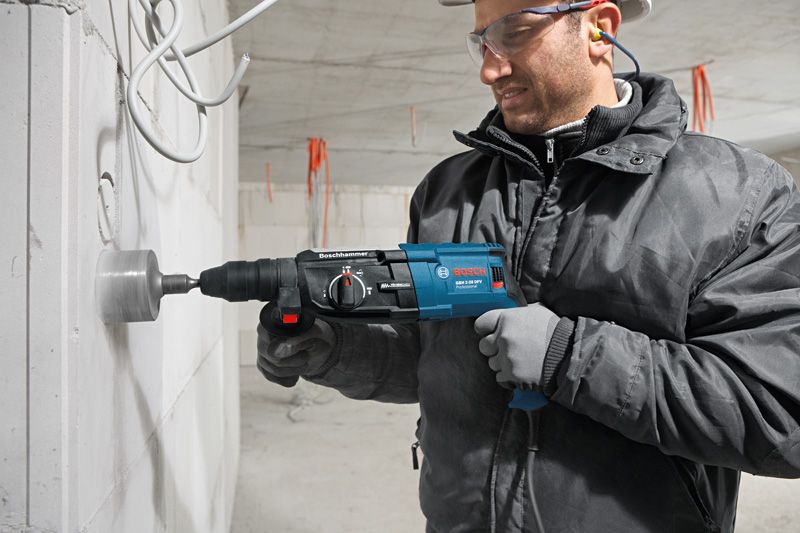

- Drilling diameter in concrete with core cutters: 16 – 68 mm
- Drilling dia. concrete, dust extraction unit: 4 – 16 mm
- Total vibration values (Hammer drilling in concrete):
- Vibration emission value ah: 11 m/s²
- Uncertainty K: 1.5 m/s²
- Total vibration values (Chiselling in concrete):
- Vibration emission value ah: 11 m/s²
- Uncertainty K: 1.5 m/s²

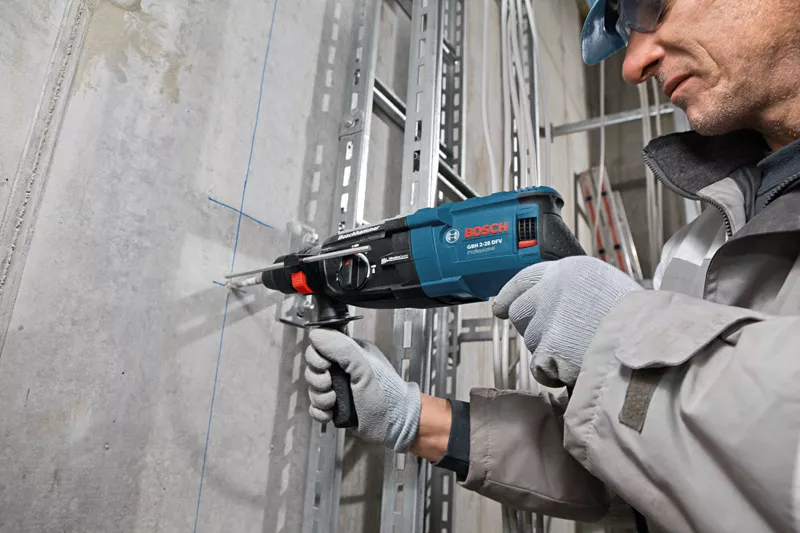

- Hammer drilling in concrete:
- Vibration emission value ah: 11 m/s²
- Uncertainty K: 1.5 m/s²
- Chiselling in concrete:
- Vibration emission value ah: 11 m/s²
- Uncertainty K: 1.5 m/s²
Included In
-
Depth gauge (Order number: 1 613 001 009)
-
Quick change chuck 13 mm (Order number: 2 608 572 212)
-
SDS plus quick-change chuck (Order number: 2 608 572 213)
-
Carrying case
-
Auxiliary handle
