Technical Data
- Impact rate at rated speed: 3,050 – 3,150 bpm
- Rated input power: 1300 W
- Impact energy: 9 J
- Tool holder: SDS max
- Voltage, electrical: 240 V
- Weight: 7.7 kg
- Drilling range
- Drilling dia. concrete, hammer drill bits: 12 – 42 mm
- Opt. appl. range concrete, hammer drill bits: 18 – 40 mm
- Drilling dia. concrete, breakthrough drill bits: 55 mm
- Drilling diameter in concrete with core cutters: 100 mm
- Total vibration values (Hammer drilling in concrete)
- Vibration emission value ah: 14.1 m/s²
- Uncertainty K: 1.5 m/s²
- Total vibration values (Chiselling in concrete)
- Vibration emission value ah: 9.5 m/s²
- Uncertainty K: 1.5 m/s²
- Hammer drilling in concrete
- Vibration emission value ah: 14.1 m/s²
- Uncertainty K: 1.5 m/s²
- Chiselling in concrete
- Vibration emission value ah: 9.5 m/s²
- Uncertainty K: 1.5 m/s²

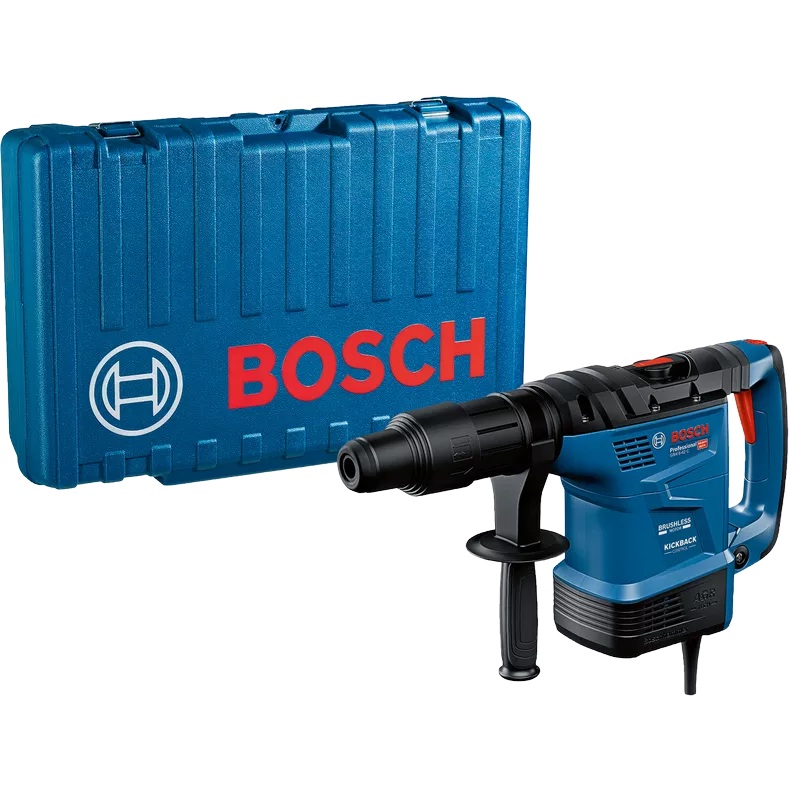

Included In
-
Carrying case
GBH 6-42 C Professional: Further information
Product Highlights
Performing heavy-duty drilling and chiselling on concrete can be exhausting and harbours risks caused by tools jamming, losing control of the tool, or exposure to excessive vibrations. With our GBH 6-42C Professional heavy-duty, 2-in1 rotary hammer you get endurance, productivity and top-level protection from arm injuries and fatigue while working because it’s equipped with advanced solutions like a safety clutch, KickBack Control, and Vibration Control. The smart-tool BeConnected app has a first-in-class user interface with real-time tool status for preventive maintenance and easy selection of the ideal working mode. Its brushless motor and auto-gear rotation system keep you productive by reducing maintenance and tool downtimes.
Equipment & Application
The GBH 6-42 C Professional is an SDS max, all-rounder rotary hammer ideal for drilling and chiselling tough materials such as concrete, stone, and masonry. It operates in all directions with a max. drilling diameter of up to 42 mm.
