Technical data
- Performance data:
- Impact rate at rated speed 1,380 – 2,720 bpm
- Rated speed 150 – 305 rpm
- Additional data:
- Rated input power: 1500 W
- Impact energy: 12.5 J
- Tool holder: SDS max
- Weight: 8.2 kg
- Drilling range:
- Drilling dia. concrete, hammer drill bits: 12 – 45 mm
- Opt. appl. range concrete, hammer drill bits: 20 – 40 mm
- Drilling dia. concrete, breakthrough drill bits: 80 – 80 mm
- Drilling diameter in concrete with core cutters:125 mm
- Total vibration values (Hammer drilling in concrete):
- Vibration emission value ah: 18.5 m/s²
- Uncertainty K: 1.5 m/s²

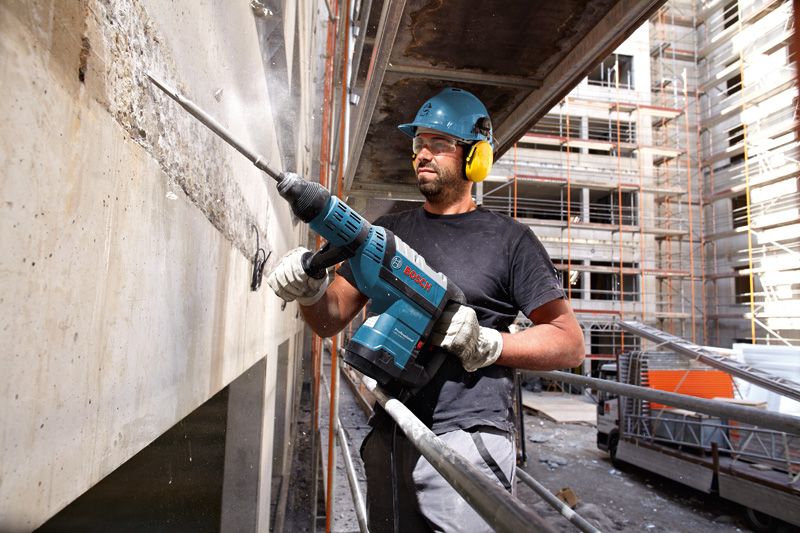

- Total vibration values (Chiselling in concrete):
- Vibration emission value ah: 14 m/s²
- Uncertainty K: 1.5 m/s²

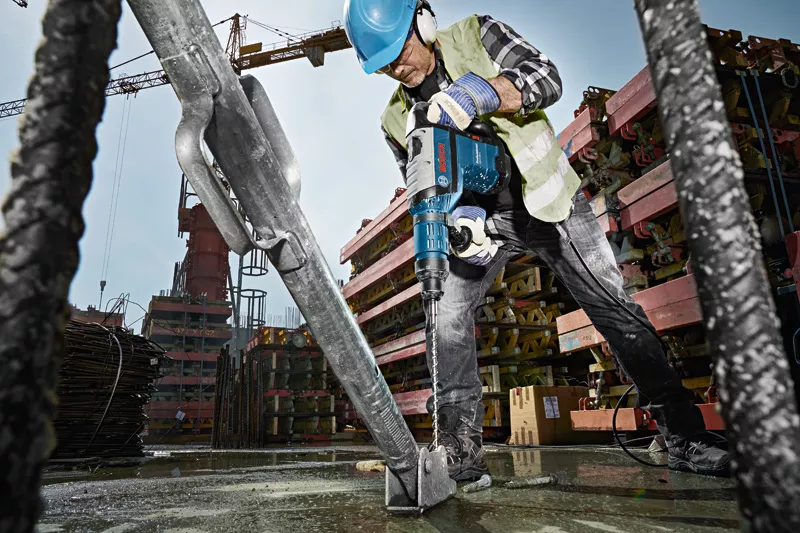

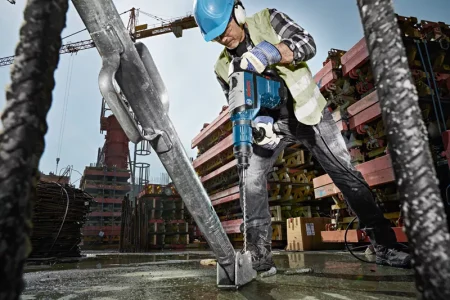

- Hammer drilling in concrete:
- Vibration emission value ah: 18.5 m/s²
- Uncertainty K: 1.5 m/s²
- Chiselling in concrete:
- Vibration emission value ah: 14 m/s²
- Uncertainty K: 1.5 m/s²

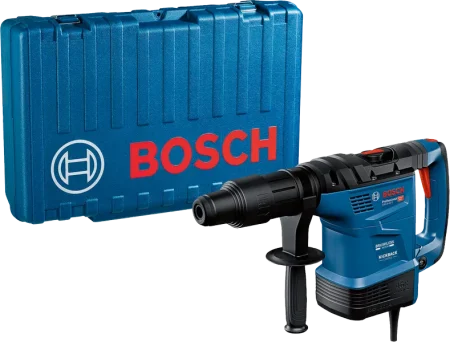

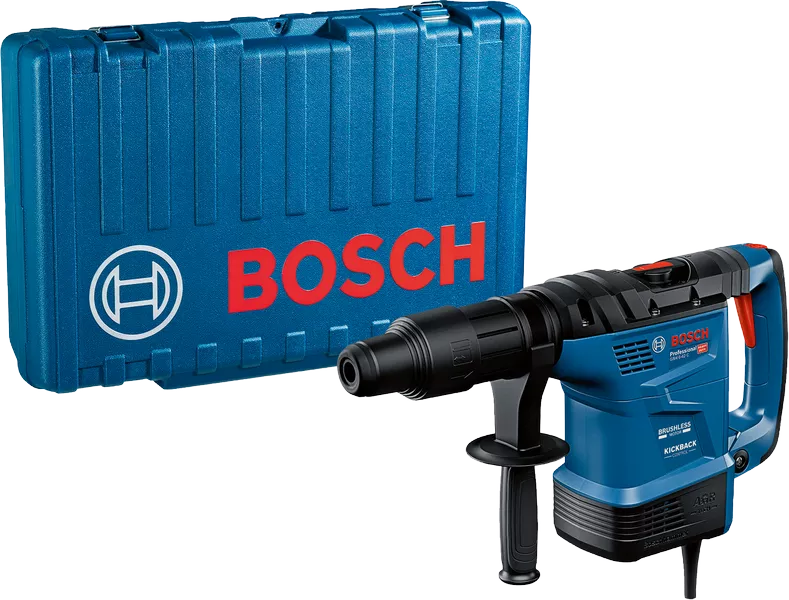

Included In
-
Cleaning cloth (Order number: 1 619 200 413)
-
Adhesive label (Order number: 6 082 941 103)
-
Grease tube (spare part number 1 615 430 010)
-
Sticker
-
Carrying case
-
Operating instructions
