Technical data
- Cutting capacity at 0° is 70 x 305 mm.
- Cutting capacity at 45° mitre is 70 x 215 mm.
- Cutting capacity at 45° bevel is 42 x 305 mm.
- Mitre setting reaches 48° left and 48° right.

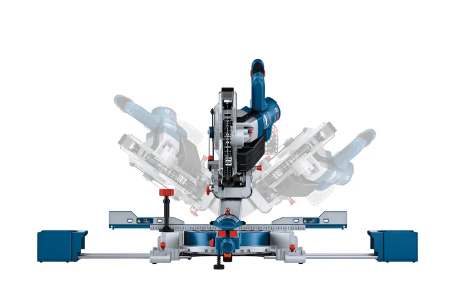

- Bevel setting reaches 47° left and 47° right.
- No-load speed runs at 5,000 rpm.
- Diameter of the saw blade is 216 mm.
- Bore diameter of the blade is 30 mm.

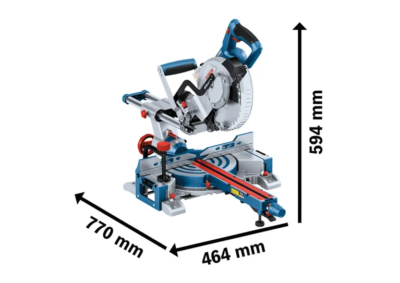

- Tool dimensions are 464 x 770 x 594 mm.
- Packaging dimensions are 464 x 770 x 594 mm.
- Weight of the tool is 16.2 kg.
- Battery voltage is 18.0 V.
