- Run Time (hrs) w/ BL1850(B)
- Low / Mid / High: 10 / 5.5 / 3
- Illuminance at
- 1m from the light source: Hi: 1,250 lx, Mid: 750 lx Lo: 400 lx
- 3m from the light source: Hi: 130 lx, Mid: 80 lx Lo: 40 lx
- 5m from the light source: Hi: 50 lx, Mid: 30 lx Lo: 15 lx
- Luminous flux: Hi: 3,000 lm, Mid: 1,700 lm Lo: 900 lm
- Dimensions (L x W x H)
- Folding Position: 260x216x1,000 mm
- Operating Position (Max Height): 573x658x1,250-2,240 mm
- Net weight: 7.2 – 7.9 kg (15.9 – 17.4 lbs.)

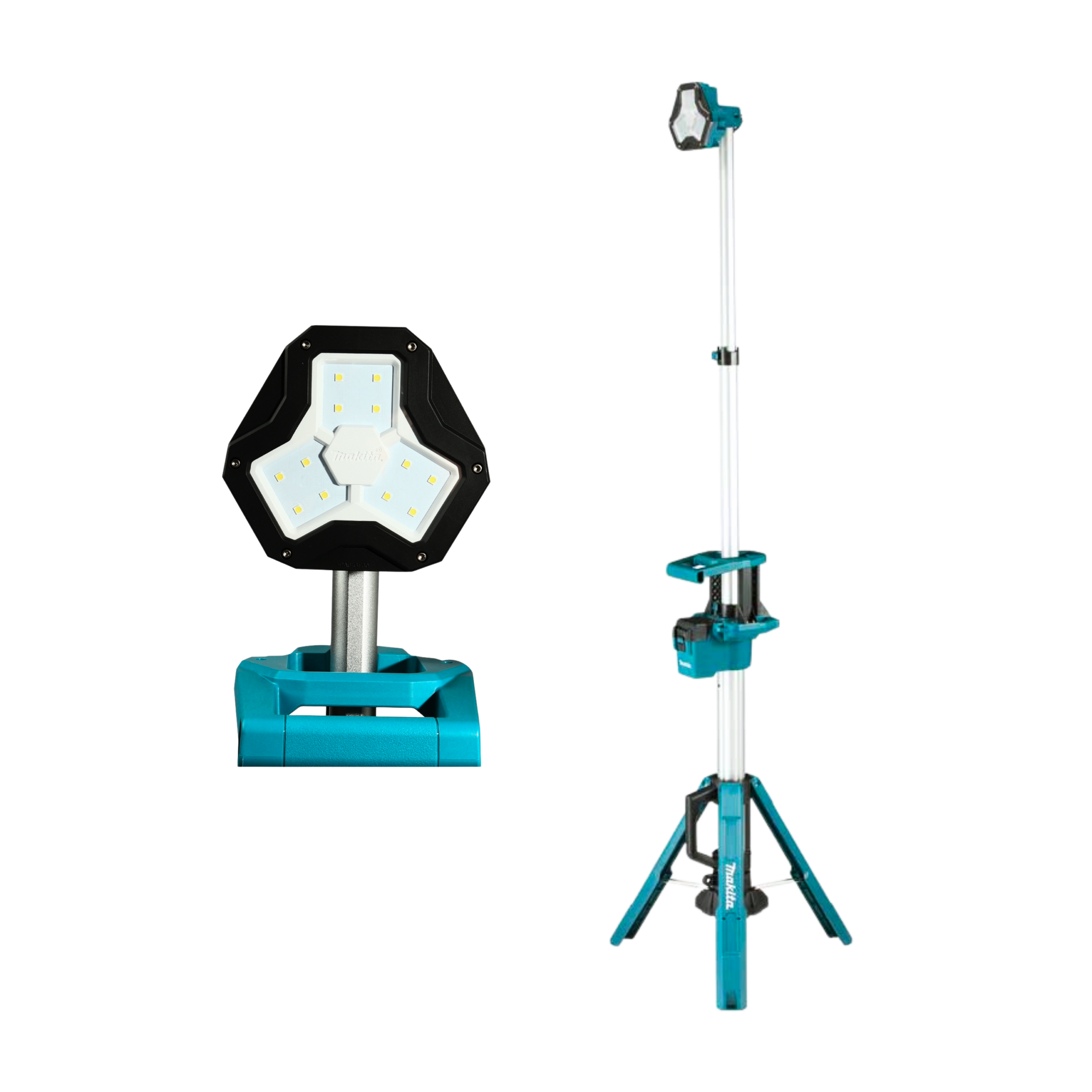

- DML813, 18V Cordless LED Tripod Worklight – Spotlight Design Only

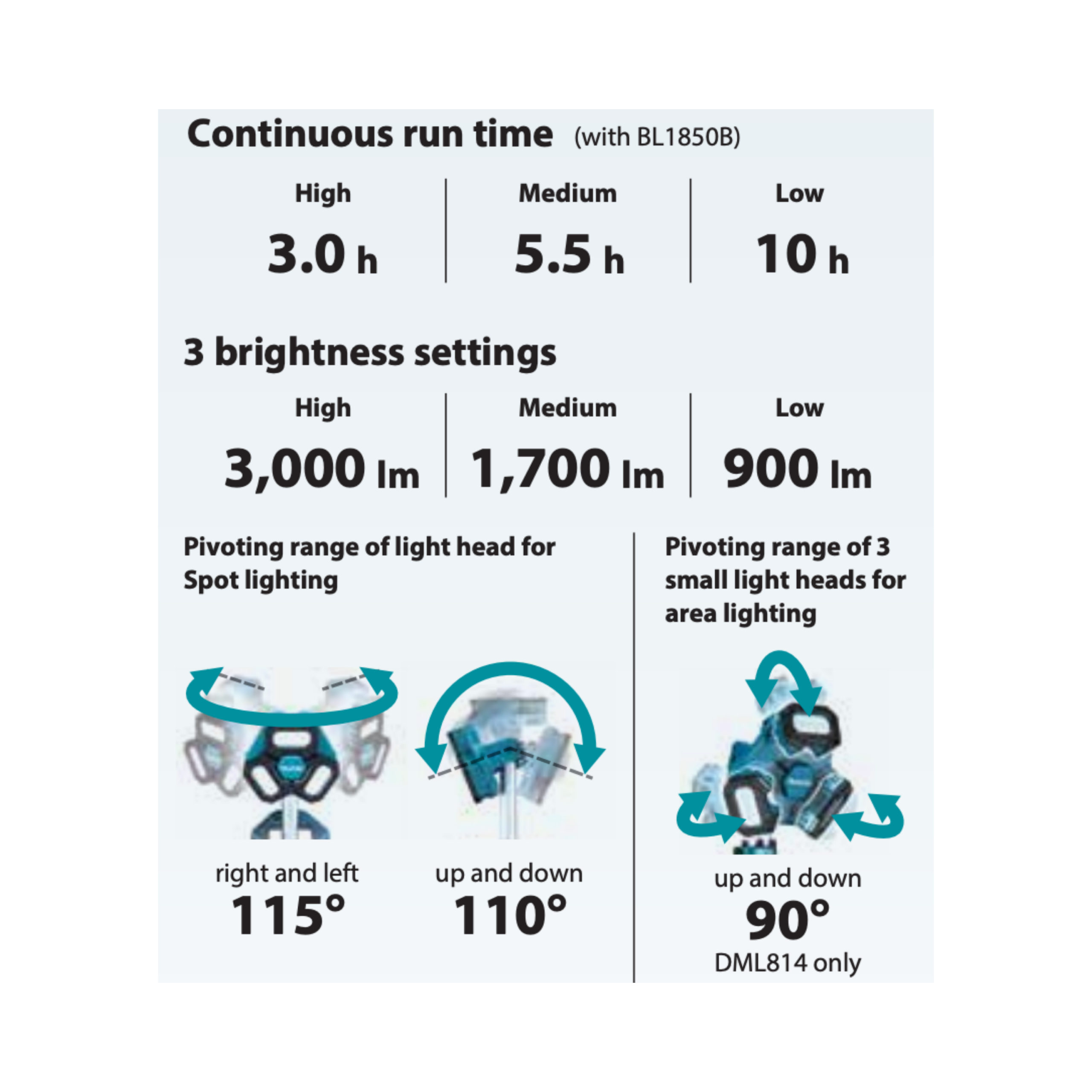

- 3 brightness settings: 3,000 lumens on high mode, 1,700 lumens on medium mode or 900 lumens on low mode
- Bright light with a max luminous flux of 3,000 lm
- Approx. 3 / 10 hours of continuous illumination with BL1850B battery at a constant illuminance on high / low mode (3,000 / 900 lm)

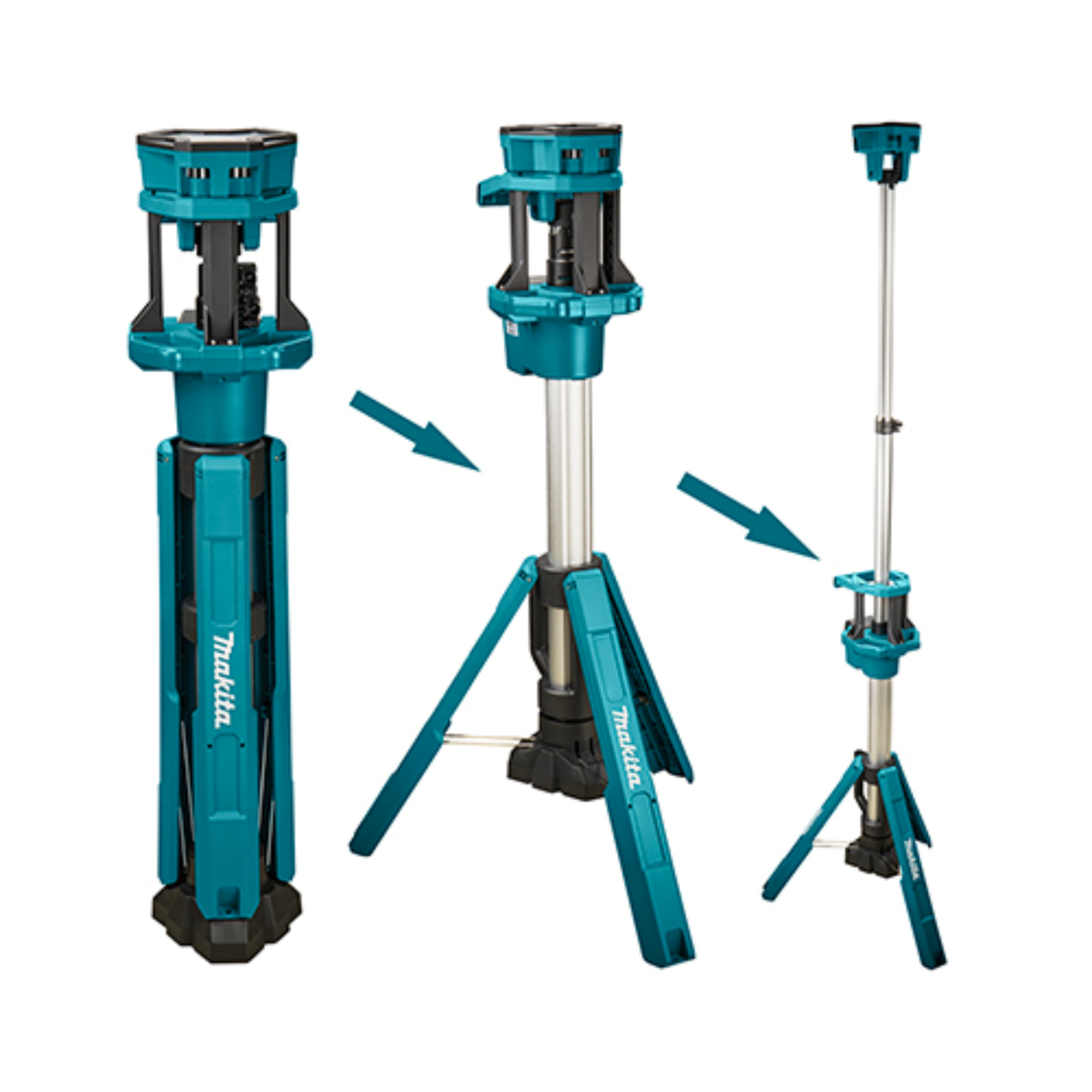

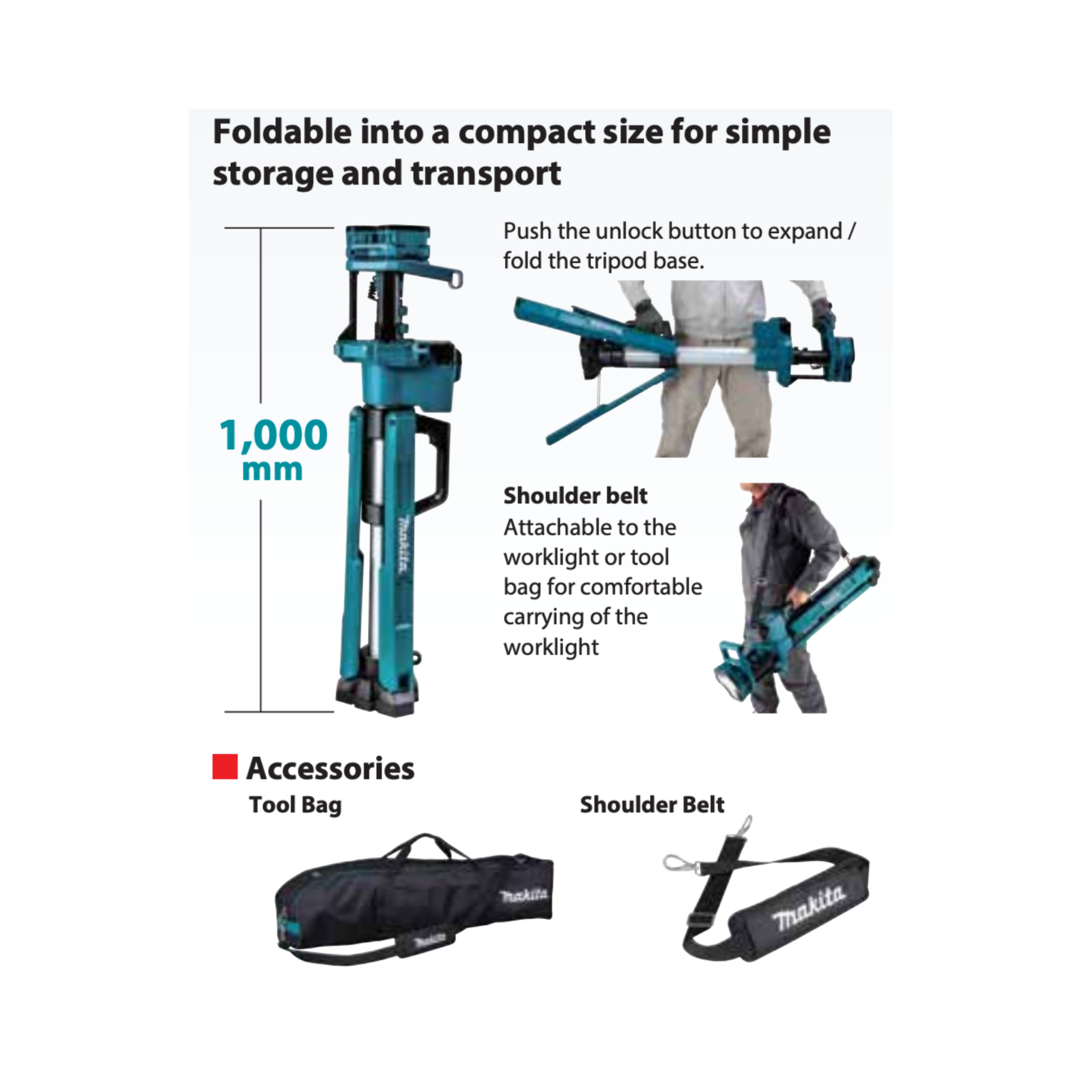

- Highly stable tripod base which is expandable/foldable simply by sliding the carrying handle

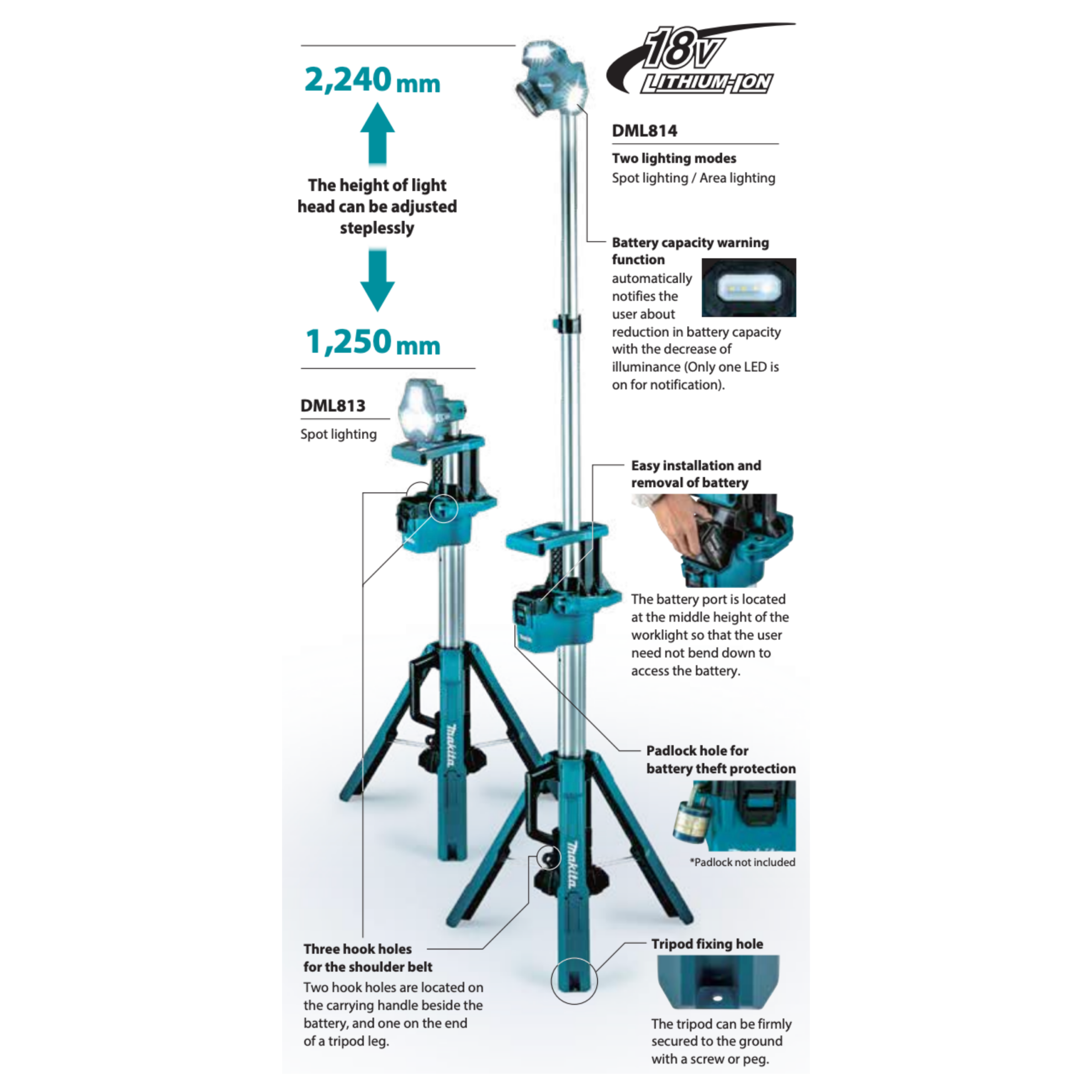

- Telescopic light mast enables lighting at a height up to 2.2 m
- Light height is adjustable from 125-224 cm
Standard Accessories and Equipment
- Shoulder Belt
Set Option
- DML813: Bare Tool (Battery and charger sold separately)
